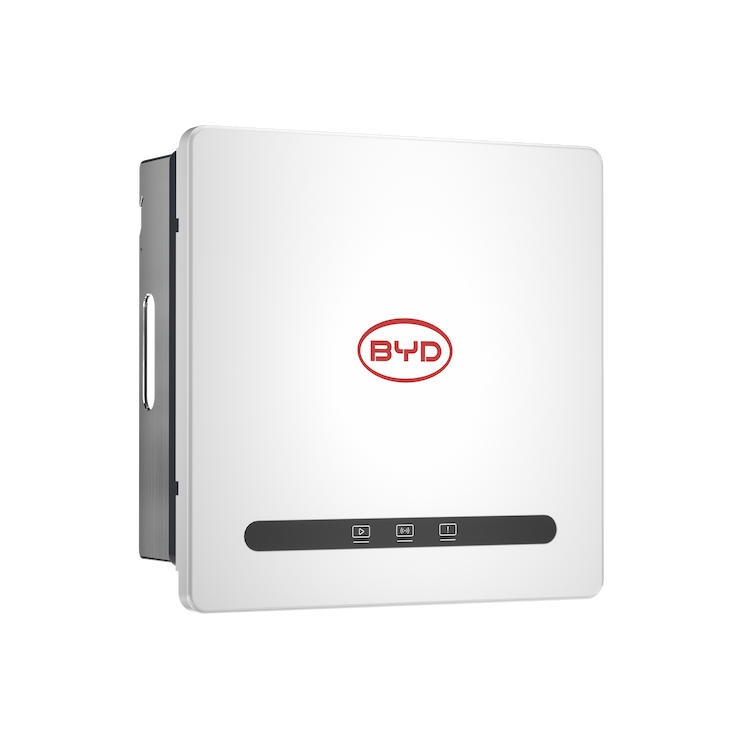

Power-Box TH5/6/8/10/12/15K
(Three Phase Hybrid Inverter)
Specification:
- Output Power: 5/6/8/10/12/15 KW
- AC Output Voltage: Three Phase (220/380V ~ 230/400V)
- input voltage: 1000 VDC
- Output frequency: 50/60Hz
- Cooling: Natural cooling (TH5
10K) / Smart Fan Cooling (TH1215K) - short-circuit current: 25A per MPPT
- Strings per MPPT: 2 strings
- Communication: WiFi / Ethernet / RS485 / CAN
- Protection: IP66
SUN2000-3/4/5/6/8/10KTL-M1
(High Current)
Specification:
- Output Power: 3/4/5/6/8/10 KW
- AC Output Voltage: Three Phase (380 ~ 400V)
- input voltage: 1100 VDC
- Output frequency: 50/60Hz
- Cooling: Natural cooling system
- short-circuit current: 15A
- Strings per MPPT: 2 strings
- Communication: WLAN/ Fast Ethernet/ 4G
- Protection: IP65
Sun2000 12-25KTL-M5
Specification:
- Output Power: 12/17/20/25 KW
- AC Output Voltage: Three Phase (380 ~ 400V)
- input voltage: 1100 VDC
- MPPT Operating voltage range: 200 ~ 1000VDC
- Output frequency: 50/60Hz
- Cooling: Natural cooling system
- short-circuit current: 40A
- Strings per MPPT: 2 strings
- Communication: WLAN/ Fast Ethernet/ 4G
- Protection: IP66
SUN2000-30/36/40KTL-M3
Specification:
- Output Power: 30/36/40 KW
- AC Output Voltage: Three Phase (380 ~ 400V)
- input voltage: 1100 VDC
- MPPT Operating voltage range: 200 ~ 1000VDC
- Output frequency: 50/60Hz
- Cooling: Natural Convection
- short-circuit current: 40A
- Strings per MPPT: 2 strings
- Communication: WLAN/ Fast Ethernet/ 4G
- Protection: IP66
Sun2000-50KTL-M3
Specification:
- Output Power: 50 KW
- AC Output Voltage: Three Phase (400V)
- input voltage: 1100 VDC
- MPPT Operating voltage range: 200 ~ 1000VDC
- Output frequency: 50/60Hz
- Cooling: Smart Air Cooling
- short-circuit current: 40A
- Strings per MPPT: 2 strings
- Communication: WLAN/ Fast Ethernet/ 4G
Protection: IP66
Sun2000-100KTL-M2
Specification:
- Output Power: 100 KW
- AC Output Voltage: Three Phase (400V)
- input voltage: 1100 VDC
- MPPT Operating voltage range: 200 ~ 1000VDC
- Output frequency: 50/60Hz
- Cooling: Smart Air Cooling
- short-circuit current: 40A
- Strings per MPPT: 2 strings
- Communication: 2/3/4G
- Support AFCI & SSLD functions.
- Protection: IP66
Sun2000-115KTL-M2
Specification:
- Output Power: 115 KW
- AC Output Voltage: Three Phase (400V)
- input voltage: 1100 VDC
- MPPT Operating voltage range: 200 ~ 1000VDC
- Output frequency: 50/60Hz
- Cooling: Smart Air Cooling
- short-circuit current: 40A
- Strings per MPPT: 2 strings
- Communication: 2/3/4G
- Protection: IP66
Sun2000-150K-MG0
Specification:
- Output Power: 150 KW
- AC Output Voltage: Three Phase (380 ~ 400V)
- input voltage: 1100 VDC
- MPPT Operating voltage range: 200 ~ 1000VDC
- Output frequency: 50/60Hz
- Cooling: Smart Air Cooling
- short-circuit current: 66A
- Strings per MPPT: 3 strings
- Communication: 2/3/4G – WLAN optional
- Support AFCI, SSLD, PID, temperature detector functions
- Protection: IP66
Sun2000-330KTL-H2
Specification:
- Output Power: 330 KW
- AC Output Voltage: Three Phase (800V)
- input voltage: 1500 VDC
- MPPT Operating voltage range: 500 ~ 1500VDC
- Output frequency: 50/60Hz
- Cooling: Smart Air Cooling
- short-circuit current: 115A
- Strings per MPPT: 5 strings
- Communication: 2/3/4G – WLAN optional
- Support AFCI, SSLD, PID, temperature detector functions
- Protection: IP66
Smart logger 3000A (00GL)
Specification:
- Number of Connected Devices 80
- WAN x 1, 10 / 100 / 1000 Mbps
- LAN x 1,10/100/1000 Mbps
- Smart zero export control design
SmartPS-80AI-T0
Specification:
- Smart Power Sensor for Zero Export
- Power Consumption: <1.5W
- Class 1 measurement accuracy
- Communication protocol: Modbus-RTU
- LCD display: easy to set and check
Sun2000-60KTL-M0
Specification:
- Smart Power Sensor for Zero Export
- Power Consumption: <1.5W
- Class 1 measurement accuracy
- Communication protocol: Modbus-RTU
- LCD display: easy to set and check
Smart Dongle-WLAN-FE
Specification:
- Number of Connected Devices 10
- Smart WLAN & Fast Ethernet (FE) communication
- Ethernet interface: 10/ 100M ethernet
- Reliable IP65 supports auto reconnection.
Smart Dongle-4G
Specification:
- Number of Connected Devices 10
- Smart 2G/3G/4G communication
- Connection interface USB
Reliable IP65 supports auto reconnection
